docker-compose管理方案

Ubuntu + Docker + Portainer + Traefik + Dozzle + File Browser

注意：此方案仅限于部署在本地服务器，如需部署到公网，请自行添加安全防护如添加 Authelia 认证

需求

通过Web界面管理docker服务和数据，使用docker-compose方式运行容器，使用域名访问容器服务

服务简介

Portainer: Web界面管理docker服务
Traefik: 反 向 代 理docker容器服务
Dozzle: 实时查看所有docker容器日志
File Browser: 轻量级文件管理器
whoami: 显示HTTP请求信息，用于测试

系统及软件版本

OS: Ubuntu Server 20.04 LTS
Docker Engine: 25.0.4
Docker Compose: 2.24.7

镜像版本

Portainer CE: portainer/portainer-ce:2.19.3
Traefik: traefik:v2.11.0
Dozzle: amir20/dozzle:v6.2.7
File Browser: filebrowser/filebrowser:v2.27.0
whoami: traefik/whoami:v1.10

部署

所有容器数据均保存在/data/docker目录下，域名使用c.com，自行配置DNS解析和生成自签名SSL证书

docker配置

$ cat /etc/docker/daemon.json
{
    "insecure-registries": ["dockerhub.c.com"],
    "exec-opts": ["native.cgroupdriver=systemd"],
    "log-driver": "json-file",
    "log-opts": {
        "max-size": "10m",
        "max-file": "3"
    }
}

创建数据目录

$ sudo mkdir -p /data/docker/{portainer,traefik,filebrowser}/data
$ sudo chown -R $USER /data/docker
$ cd /data/docker
$ mkdir -p traefik/data/{cert,config,log} filebrowser/data/config
$ tree /data/docker
/data/docker
├── filebrowser
│   └── data
│       └── config
├── portainer
│   └── data
└── traefik
    └── data
        ├── cert
        ├── config
        └── log

通过命令行创建并运行portainer容器

$ cd /data/docker/portainer
$ vim docker-compose.yml
version: "3.8"
services:
  portainer:
    container_name: portainer
    image: portainer/portainer-ce:2.19.3
    restart: unless-stopped
    security_opt:
      - no-new-privileges:true
    ports:
      - 9443:9443
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - /data/docker/portainer/data:/data
    labels:
      - traefik.enable=true
      - traefik.http.routers.portainer.rule=Host(`portainer.c.com`)
      - traefik.http.routers.portainer.entrypoints=http,https
      - traefik.http.routers.portainer.priority=10
      - traefik.http.routers.portainer.tls=true
      - traefik.http.routers.portainer.service=portainer
      - traefik.http.services.portainer.loadbalancer.server.port=9000
      #- traefik.http.services.portainer.loadbalancer.server.scheme=https

networks:
  default:
    name: traefik

# 运行容器
$ docker compose up -d

通过命令行创建traefik和filebrowser配置文件

点击查看traefik配置文件
$ cd /data/docker/traefik/data
# 主配置文件
$ vim traefik.yml
global:
  checkNewVersion: false
  sendAnonymousUsage: false

entryPoints:
  http:
    address: :80
    proxyProtocol:
      insecure: true
    forwardedHeaders:
      insecure: true
    http:
      redirections:
        entryPoint:
          to: https
          scheme: https
          permanent: true
          priority: 20
  https:
    address: :443
    proxyProtocol:
      insecure: true
    forwardedHeaders:
      insecure: true

log:
  level: WARN
  filePath: /dev/stdout
  #filePath: /data/log/traefik.log
  format: common

accessLog:
  filePath: /dev/stdout
  #filePath: /data/log/access.log
  format: common

api:
  insecure: true
  dashboard: true

ping:
  entryPoint: traefik

providers:
  docker:
    endpoint: "unix:///var/run/docker.sock"
    exposedByDefault: false
    defaultRule: Host(`{{ .ContainerName }}.c.com`)
  file:
    directory: /data/config
    watch: true

# 动态配置文件
$ vim config/config.yml
tls:
  stores:
    default:
      defaultCertificate:
        certFile: /data/cert/cert.crt
        keyFile: /data/cert/cert.key
  certificates:
    - certFile: /data/cert/cert.crt
      keyFile: /data/cert/cert.key

# 复制域名证书和CA证书到cert目录
$ tree
├── cert
│   ├── cert.crt # 域名证书
│   ├── cert.key # 域名私钥
│   └── root.crt # CA证书
├── config
│   └── config.yml # 动态配置文件
├── log
└── traefik.yml # 主配置文件
点击查看filebrowser配置文件
$ cd /data/docker/filebrowser/data
$ vim config/filebrowser.json
{
  "port": 80,
  "baseURL": "",
  "address": "",
  "log": "stdout",
  "database": "/config/database.db",
  "root": "/data"
}

通过portainer的web界面创建并运行其他容器

先使用IP+端口号登录portainer
https://IP:9443

添加容器traefik
点击左侧菜单栏“Stacks”-“Add stack”-“Web editor”，Name为traefik，docker-compose配置如下

点击查看docker-compose配置
version: "3.8"
services:
  traefik:
    container_name: traefik
    image: traefik:v2.11.0
    restart: unless-stopped
    ports:
      - 80:80
      - 443:443
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - /data/docker/traefik/data/traefik.yml:/etc/traefik/traefik.yml
      - /data/docker/traefik/data:/data
    labels:
      - traefik.enable=true
      - traefik.http.routers.ping.rule=Host(`traefik.c.com`) && PathPrefix(`/ping`)
      - traefik.http.routers.ping.entrypoints=http,https
      - traefik.http.routers.ping.service=ping@internal
      - traefik.http.routers.ping.tls=true
      - traefik.http.routers.traefik.rule=Host(`traefik.c.com`) && PathPrefix(`/`)
      - traefik.http.routers.traefik.entrypoints=http,https
      - traefik.http.routers.traefik.service=api@internal
      - traefik.http.routers.traefik.tls=true

networks:
  default:
    name: traefik

添加容器dozzle
Name为dozzle，docker-compose配置如下

点击查看docker-compose配置
version: "3.8"
services:
  dozzle:
    container_name: dozzle
    image: amir20/dozzle:v6.2.7
    restart: unless-stopped
    environment:
      - TZ=Asia/Shanghai
      - DOZZLE_NO_ANALYTICS=true
      - DOZZLE_LEVEL=info
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
    labels:
      - traefik.enable=true
      - traefik.http.routers.dozzle.rule=Host(`dozzle.c.com`)
      - traefik.http.routers.dozzle.entrypoints=http,https
      - traefik.http.routers.dozzle.priority=10
      - traefik.http.routers.dozzle.tls=true

networks:
  default:
    name: traefik
    external: true

添加容器filebrowser
Name为filebrowser，docker-compose配置如下

点击查看docker-compose配置
version: "3.8"
services:
  filebrowser:
    container_name: filebrowser
    image: filebrowser/filebrowser:v2.27.0
    restart: unless-stopped
    volumes:
      - /data/docker/filebrowser/data/config/filebrowser.json:/.filebrowser.json
      - /data/docker/filebrowser/data/config:/config
      - /data/docker:/data
    labels:
      - traefik.enable=true
      - traefik.http.routers.filebrowser.rule=Host(`filebrowser.c.com`)
      - traefik.http.routers.filebrowser.entrypoints=http,https
      - traefik.http.routers.filebrowser.priority=10
      - traefik.http.routers.filebrowser.tls=true

networks:
  default:
    name: traefik
    external: true

添加容器whoami
Name为whoami，docker-compose配置如下

点击查看docker-compose配置
version: "3.8"
services:
  demo1:
    container_name: demo1
    image: traefik/whoami:v1.10
    hostname: demo1
    restart: unless-stopped
    # 开启http和https
    labels:
      - traefik.enable=true
      - traefik.http.routers.demo1.rule=Host(`demo1.c.com`)
      - traefik.http.routers.demo1.entrypoints=http,https
      - traefik.http.routers.demo1.priority=10
      - traefik.http.routers.demo1.tls=true
      # 增加一个域名whoami.c.com的配置
      - traefik.http.routers.whoami.rule=Host(`whoami.c.com`)
      - traefik.http.routers.whoami.entrypoints=http,https
      - traefik.http.routers.whoami.priority=10
      - traefik.http.routers.whoami.tls=true

  demo2:
    container_name: demo2
    image: traefik/whoami:v1.10
    hostname: demo2
    restart: unless-stopped
    # 开启http和https，但不强制跳转https
    labels:
      - traefik.enable=true
      - traefik.http.routers.demo2.rule=Host(`demo2.c.com`)
      - traefik.http.routers.demo2.entrypoints=http
      - traefik.http.routers.demo2.priority=30
      - traefik.http.routers.demo2-https.rule=Host(`demo2.c.com`)
      - traefik.http.routers.demo2-https.entrypoints=https
      - traefik.http.routers.demo2-https.priority=30
      - traefik.http.routers.demo2-https.tls=true

networks:
  default:
    name: traefik
    external: true

后续添加其他容器可参考whoami的labels配置，
是否跳转https取决于priority的数值，数值越大越优先，
traefik配置文件中已定义全局http跳转https，priority=20，
如果配置容器的priority小于20，如priority=10，则全局配置优先，
如果配置容器的priority大于20，如priority=30，则自定义配置优先，
另外注意如果不想强制跳转https，必须拆分为http和https两个entrypoints，如whoami的demo2和demo2-https。

如果容器的服务端口不是80端口，如portainer的服务端口为9000，则需要添加如下labels配置
- traefik.http.services.portainer.loadbalancer.server.port=9000

访问测试

https://portainer.c.com
https://traefik.c.com
https://dozzle.c.com
https://filebrowser.c.com
https://whoami.c.com
http://demo2.c.com
https://demo2.c.com

界面展示

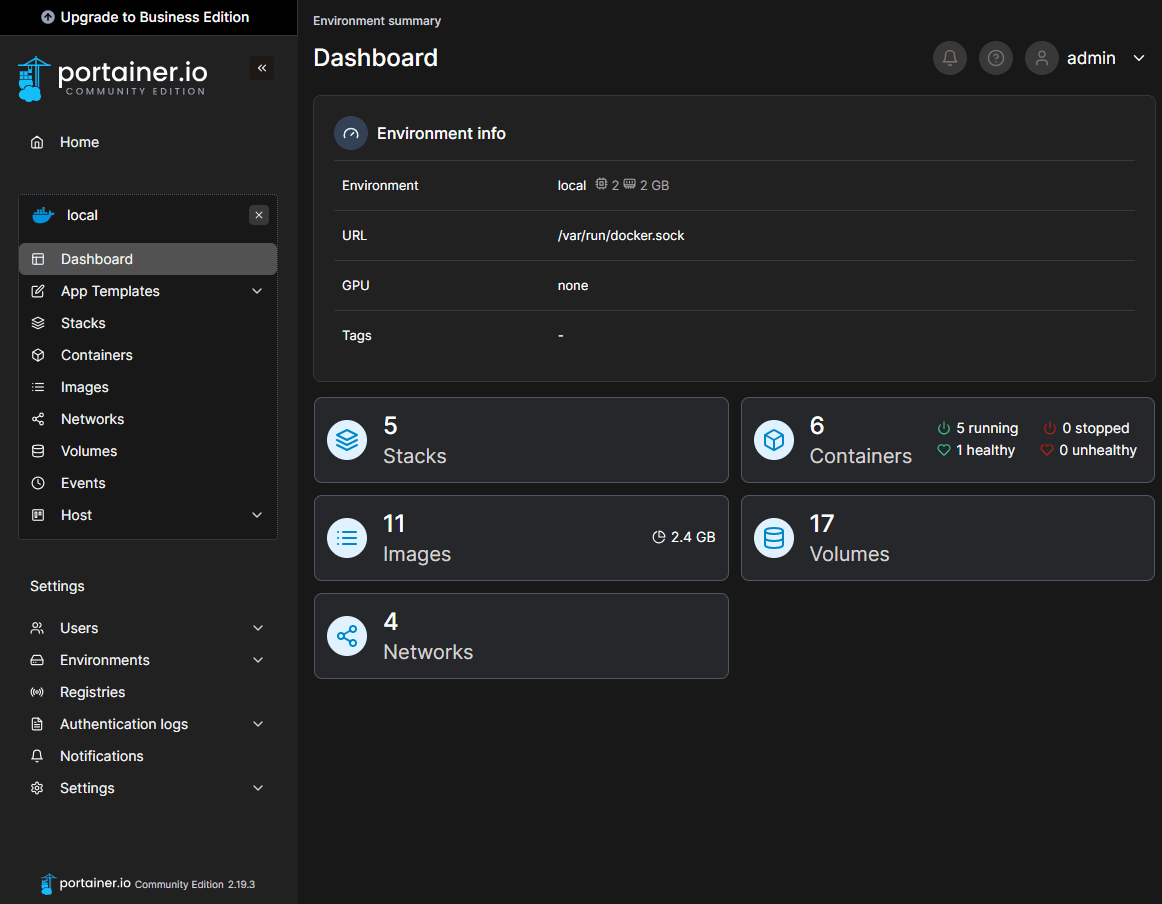

2024-04-07_165540-portainer
2024-04-07_165540-portainer1162×904 33.2 KB

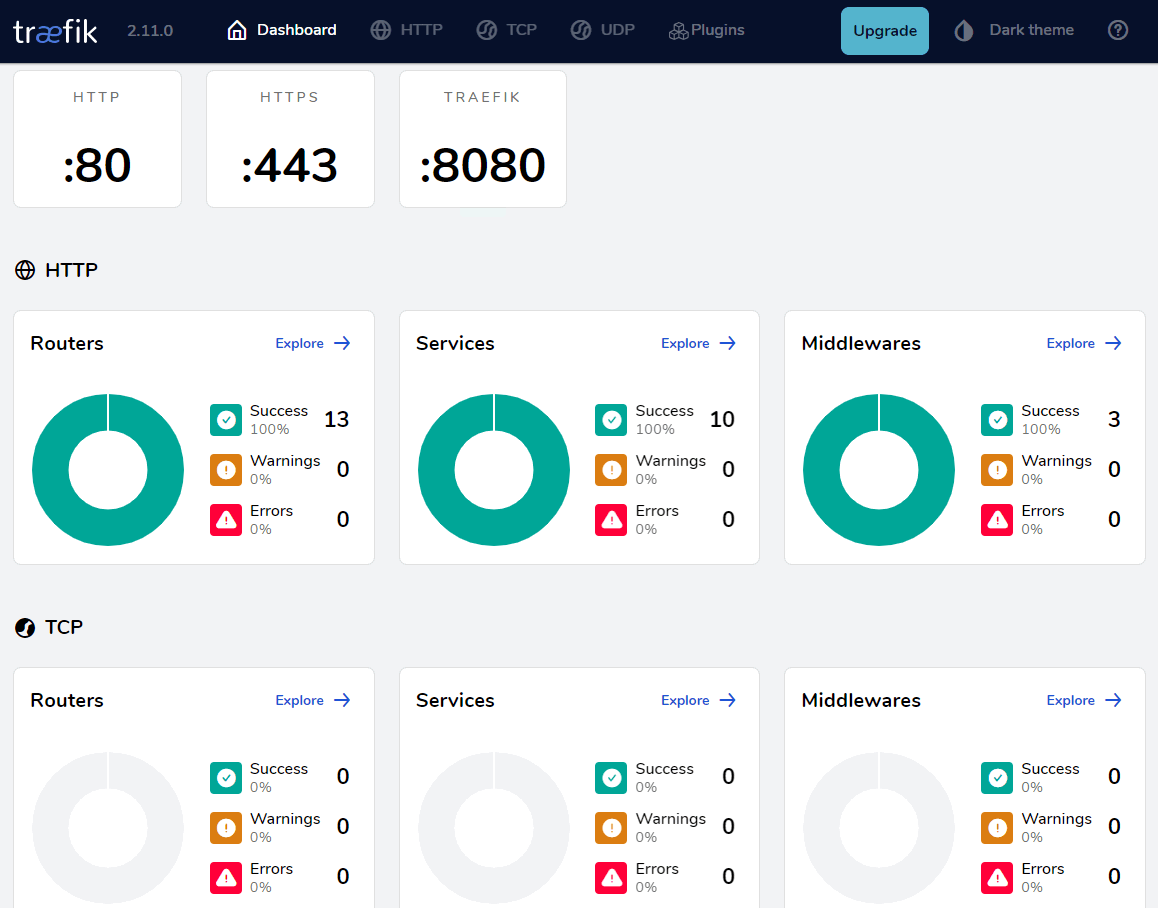

2024-04-07_162255-traefik-1
2024-04-07_162255-traefik-11158×908 35.8 KB

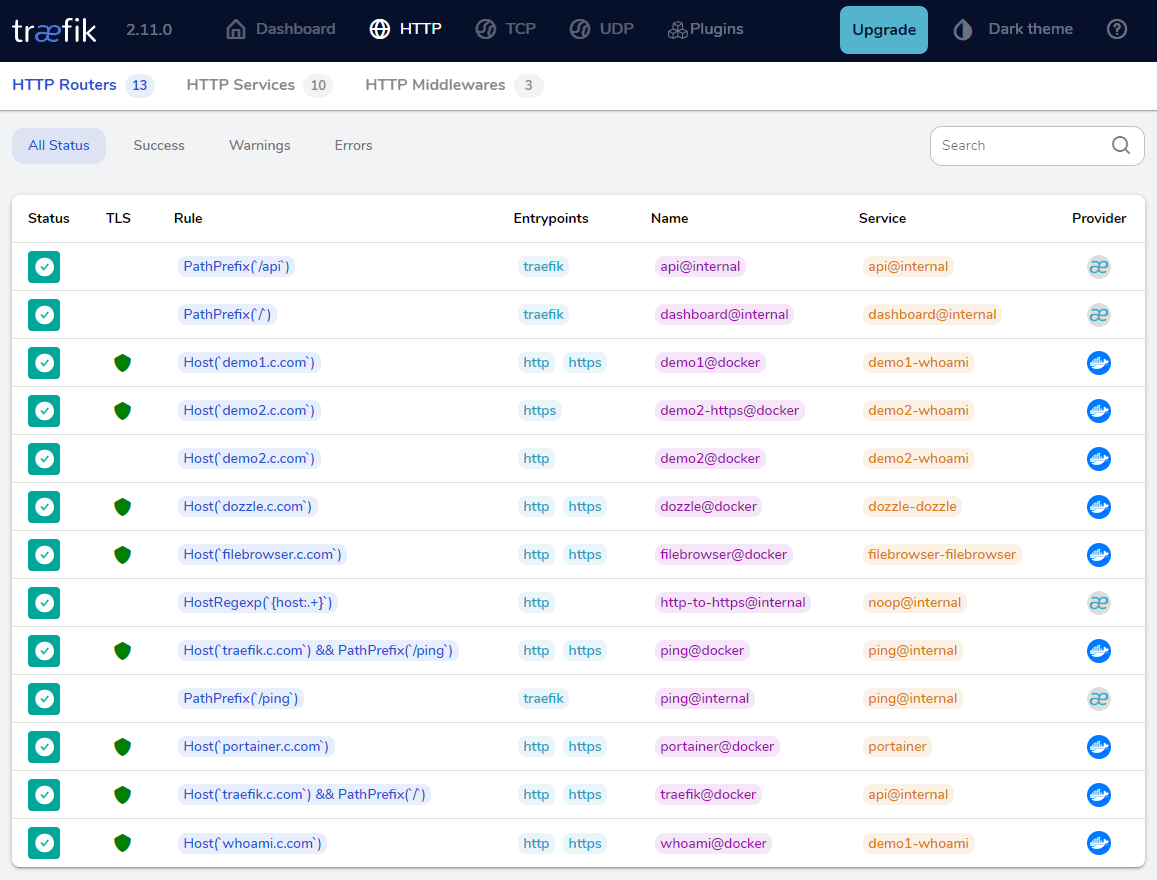

2024-04-07_161916-traefik-2
2024-04-07_161916-traefik-21157×880 48.9 KB

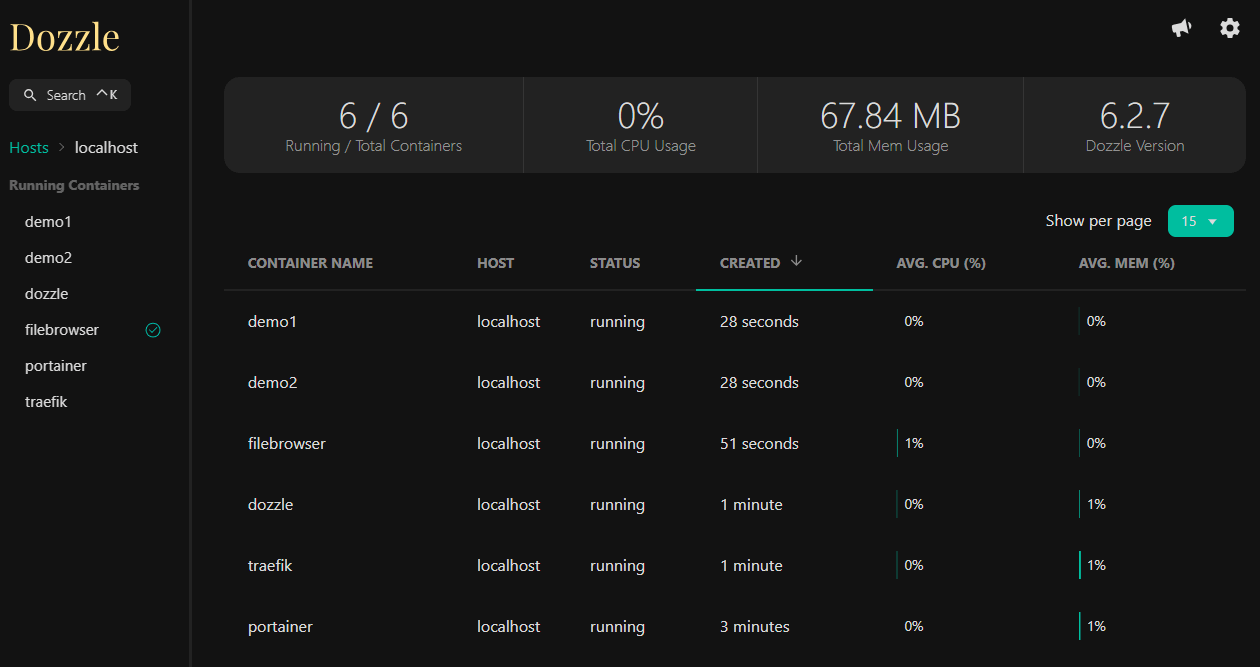

2024-04-07_161638-dozzle-1
2024-04-07_161638-dozzle-11260×667 20.2 KB

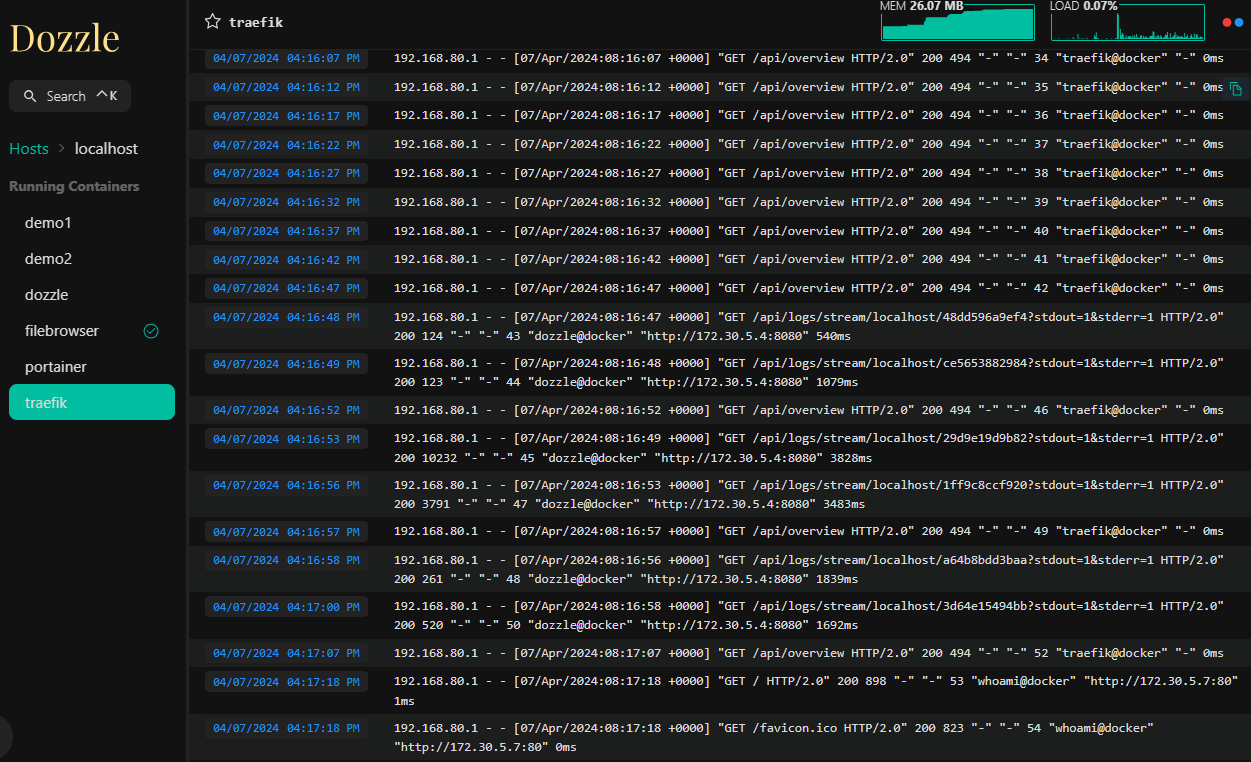

2024-04-07_161736-dozzle-2
2024-04-07_161736-dozzle-21251×762 60.4 KB

2024-04-07_162328-filebrowser
2024-04-07_162328-filebrowser1167×428 9.31 KB
